< 와인종류 분류하기 >
- 입력계층의 출력크기 64
- 은닉계층의 출력크기 32
- 나머지는?
- 콜백함수 모두 적용
- 옵티마이저 모두 적용 후 가장 좋은 성능일 때 옵티마이저 확인해 보기
- 정밀도, 재현율, f1-score, confusion_matrix 출력
실습해보기 - 내코드 🐥
import pandas as pd
import numpy as np
import tensorflow as tf
from tensorflow import keras
import matplotlib.pyplot as plt
import seaborn as sns
"""한글처리"""
plt.rc("font", family = "Malgun Gothic")
"""마이너스 기호 처리"""
plt.rcParams["axes.unicode_minus"] = True
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler
"""정확도 : 훈련 및 검증 정확도에서 사용한 score()함수와 동일함"""
from sklearn.metrics import accuracy_score
"""정밀도"""
from sklearn.metrics import precision_score
"""재현율"""
from sklearn.metrics import recall_score
"""f1-score"""
from sklearn.metrics import f1_score
import numpy as np
"""오차행렬 계산 라이브러리"""
from sklearn.metrics import confusion_matrix
"""오차행렬도 시각화 라이브러리"""
from sklearn.metrics import ConfusionMatrixDisplay
"""실행 결과를 동일하게 하기 위한 처리(완전 동일하지 않을 수도 있음)"""
tf.keras.utils.set_random_seed(42)
"""연산 고정"""
tf.config.experimental.enable_op_determinism()
"""데이터 불러오기"""
data = pd.read_csv("./data/08_wine.csv")
data
"""데이터 추출하기"""
X = data.iloc[:, :-1]
y = data["class"]
X.shape, y.shape
((6497, 3), (6497,))
"""데이터 정규화"""
ss = StandardScaler()
X_scaler = ss.fit_transform(X)
X_scaler.shape, X_scaler
((6497, 3),
array([[-0.91546416, -0.7447781 , 1.81308951],
[-0.58006813, -0.59764007, -0.11507303],
[-0.58006813, -0.66069923, 0.25811972],
...,
[-0.91546416, -0.89191614, -1.42124765],
[ 1.9354021 , -0.91293585, 0.75571005],
[ 1.09691202, -0.97599501, 0.25811972]]))
"""데이터 분류하기"""
train_X, temp_X, train_y, temp_y = train_test_split(X_scaler, y, test_size = 0.4, random_state=42)
val_X, test_X, val_y, test_y = train_test_split(temp_X, temp_y, test_size = 0.5, random_state=42)
print(f"train_input={train_X.shape} / train_target={train_y.shape}")
print(f"test_input={val_X.shape} / test_target={val_y.shape}")
print(f"test_input={test_X.shape} / test_target={test_y.shape}")
train_input=(3898, 3) / train_target=(3898,)
test_input=(1299, 3) / test_target=(1299,)
test_input=(1300, 3) / test_target=(1300,)
"""모델 생성하기"""
model = keras.Sequential()
model
<keras.engine.sequential.Sequential at 0x2e0fd5d7a90>
"""계층 생성하기"""
model.add(
keras.layers.Dense(64, activation="sigmoid", input_shape=(3, ), name="input_layer")
)
model.add(
keras.layers.Dense(32, activation="sigmoid", name="hidden_layer")
)
model.add(
keras.layers.Dense(1, activation="sigmoid", name="output_layer")
)

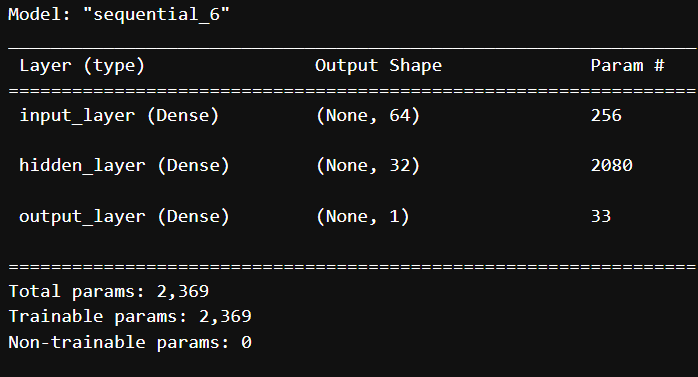

model.summary()
""" 옵티마이저 모두 적용 후 가장 좋은 성능일 때 옵티마이저 확인해 보기 """
""" 옵티마이저를 리스트로 정의하기 """
optimizers = ["sgd", "adagrad", "rmsprop", "adam"]
"""최고 정확도를 담을 변수 정의"""
best_acc = 0.0
"""최고 정확도일 때의 학습방법을 담을 변수 정의"""
best_acc_opt = ""
"""최저 손실율을 담을 변수 정의"""
best_loss = 1.0
"""최저 손실율일 때의 학습방법을 담을 변수 정의"""
best_loss_opt = ""
"""옵티마이저의 학습방법을 반복하여 성능 확인하기"""
for opt in optimizers:
print(f"-------------------------{opt}---------------------------")
"""모델 설정하기"""
model.compile(optimizer=opt, loss="binary_crossentropy", metrics="accuracy")
"""훈련하기"""
### ModelCheckPoint()
checkpoint_cb = keras.callbacks.ModelCheckpoint("./model/best_model.h5", save_best_only=True)
### EarlyStopping()
early_stopping_cb = keras.callbacks.EarlyStopping(patience=2, restore_best_weights=True)
history = model.fit(train_X, train_y, epochs=100, verbose=1, validation_data=(val_X, val_y), callbacks=[checkpoint_cb, early_stopping_cb])
"""성능 평가하기"""
val = model.evaluate(val_X, val_y)
"""가장 높은 정확도와 이때 학습방법 저장하기"""
if best_acc < val[1]:
best_acc = val[1]
best_acc_opt = opt
"""가장 낮은 손실율와 이때 학습방법 저장하기"""
if best_loss > val[0]:
best_loss = val[0]
best_loss_opt = opt
print()

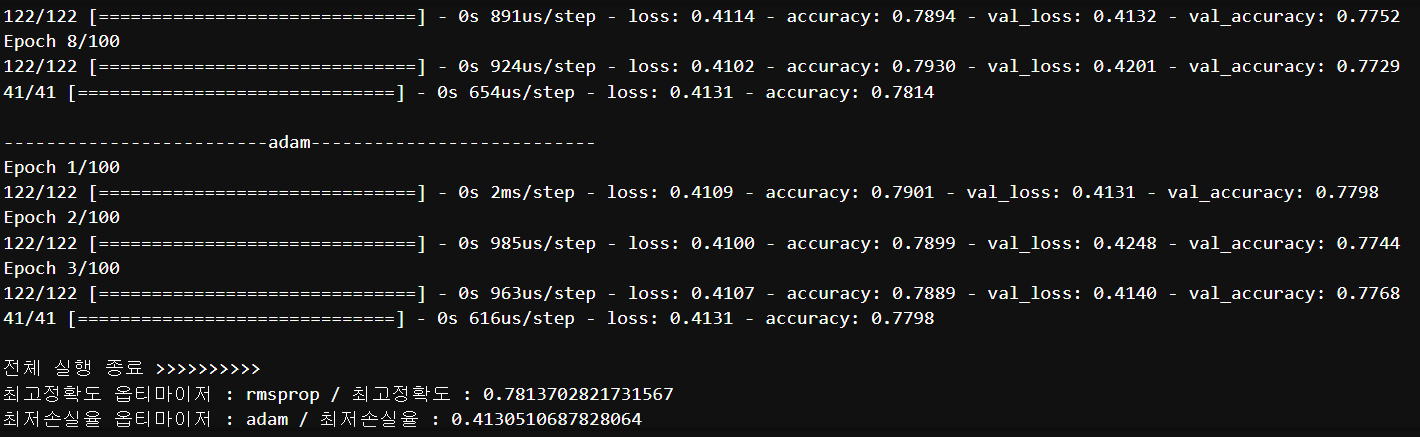

print("전체 실행 종료 >>>>>>>>>>")
print(f"최고정확도 옵티마이저 : {best_acc_opt} / 최고정확도 : {best_acc} ")
print(f"최저손실율 옵티마이저 : {best_loss_opt} / 최저손실율 : {best_loss} ")
""" 예측하기 """
y_pred = model.predict(test_X)
threshold = 0.5
binary_test_y = np.where(test_y >= threshold, 1, 0)
binary_y_pred = np.where(y_pred >= threshold, 1, 0)
"""정밀도"""
pre = precision_score(binary_test_y, binary_y_pred)
"""재현율"""
rec = recall_score(binary_test_y, binary_y_pred)
"""f1-score"""
f1 = f1_score(binary_test_y, binary_y_pred)
"""confusion_matrix"""
conf = confusion_matrix(binary_test_y, binary_y_pred)
print(f"정밀도 : {pre}, 재현율 : {rec}, f1 : {f1}, 오차행렬 : {conf}")
정밀도 : 0.8100664767331434, 재현율 : 0.8978947368421053, f1 : 0.8517224163754368,
오차행렬 : [[150 200]
[ 97 853]]

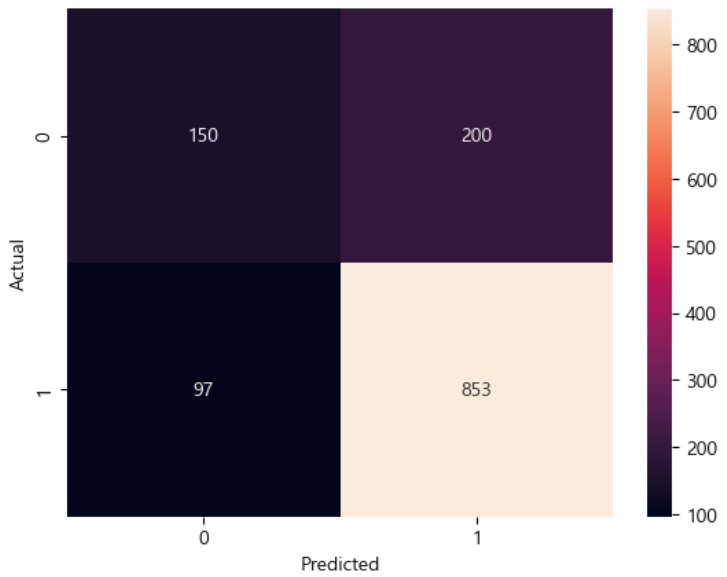

"""오차 행렬 시각화"""
sns.heatmap(conf, annot=True, fmt="d")
plt.xlabel('Predicted')
plt.ylabel('Actual')
plt.show()
실습해보기 - 강사님 🐥
"""사용할 라이브러리"""
import pandas as pd
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler
import tensorflow as tf
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import Dense
from sklearn.metrics import accuracy_score
from sklearn.metrics import precision_score
from sklearn.metrics import recall_score
from sklearn.metrics import f1_score
from sklearn.metrics import confusion_matrix
"""데이터 불러들이기"""
data = pd.read_csv("./data/08_wine.csv")

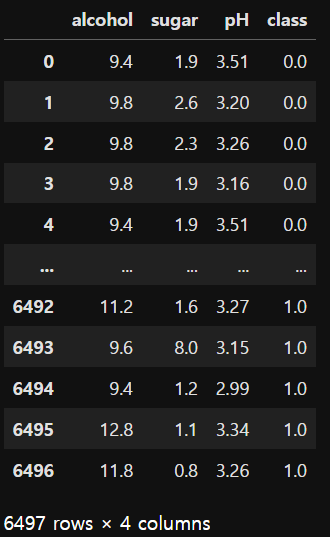

data.head(1)
"""독립변수와 종속변수로 분류하기"""
X = data.iloc[:, :-1]
y = data["class"]
X.shape, y.shape
((6497, 3), (6497,))
X, y
( alcohol sugar pH
0 9.4 1.9 3.51
1 9.8 2.6 3.20
2 9.8 2.3 3.26
3 9.8 1.9 3.16
4 9.4 1.9 3.51
... ... ... ...
6492 11.2 1.6 3.27
6493 9.6 8.0 3.15
6494 9.4 1.2 2.99
6495 12.8 1.1 3.34
6496 11.8 0.8 3.26
[6497 rows x 3 columns],
0 0.0
1 0.0
2 0.0
3 0.0
4 0.0
...
6492 1.0
6493 1.0
6494 1.0
6495 1.0
6496 1.0
Name: class, Length: 6497, dtype: float64)
"""데이터 스케일링(정규화, 표준화)"""
scaler = StandardScaler()
scaler.fit(X)
X_scaled = scaler.transform(X)
X_scaled.shape
(6497, 3)
<데이터 분류>
- 2단계(훈련:테스트 - 7:3, 7.5:2.5 많이 사용) : 데이터 양이 많지 않을때
- 3단계(훈련:검증:테스트 - 6:2:2, 5:3:2 많이 사용) : 검증 데이터를 가지고 튜닝하고 성능검사
: 테스트 데이터는 앞에서 성능검증하고 마지막에 테스트로 예측 후 성능평가함.
""" 훈련 : 검증 : 테스트 = 6 : 2 : 2로 분리하기 """
X_train, X_temp, y_train, y_temp = train_test_split(X_scaled, y, test_size=0.4, random_state=42)
X_val, X_test, y_val, y_test = train_test_split(X_temp, y_temp, test_size=0.5, random_state=42)
X_train.shape, y_train.shape, X_val.shape, y_val.shape, X_test.shape, y_test.shape
((3898, 3), (3898,), (1299, 3), (1299,), (1300, 3), (1300,))
"""모델 생성"""
# from tensorflow.keras.models import Sequential
# from tensorflow.keras.layers import Dense
model = Sequential()
model
<keras.engine.sequential.Sequential at 0x1b25ddaf100>
"""입력계층
- input_dim=3 : 입력 특성의 갯수 (input_shape 대신에 사용가능)
"""
model.add(Dense(64, activation="relu", input_dim=3))
"""은닉계층
- 드롭아웃(DropOut)도 들어갈 수 있다. 과대적합이 났을때 사용해서 튜닝하고 확인(은닉계층 전에 사용)"""
model.add(Dense(32, activation="relu"))
"""출력계층"""
model.add(Dense(1, activation="sigmoid"))

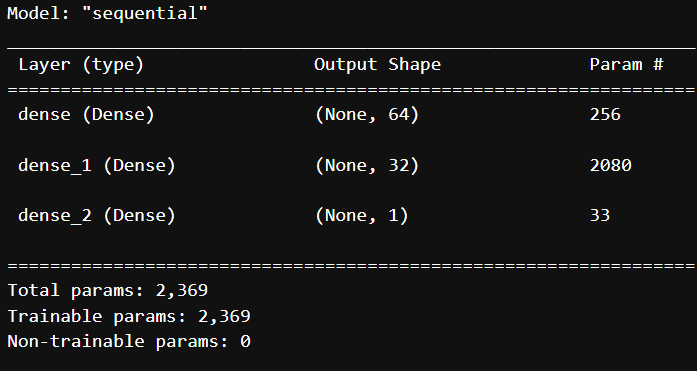

model.summary()
"""모델 설정하기"""
model.compile(loss="binary_crossentropy", optimizer="adam", metrics=["accuracy"])
"""모델 훈련시키기"""

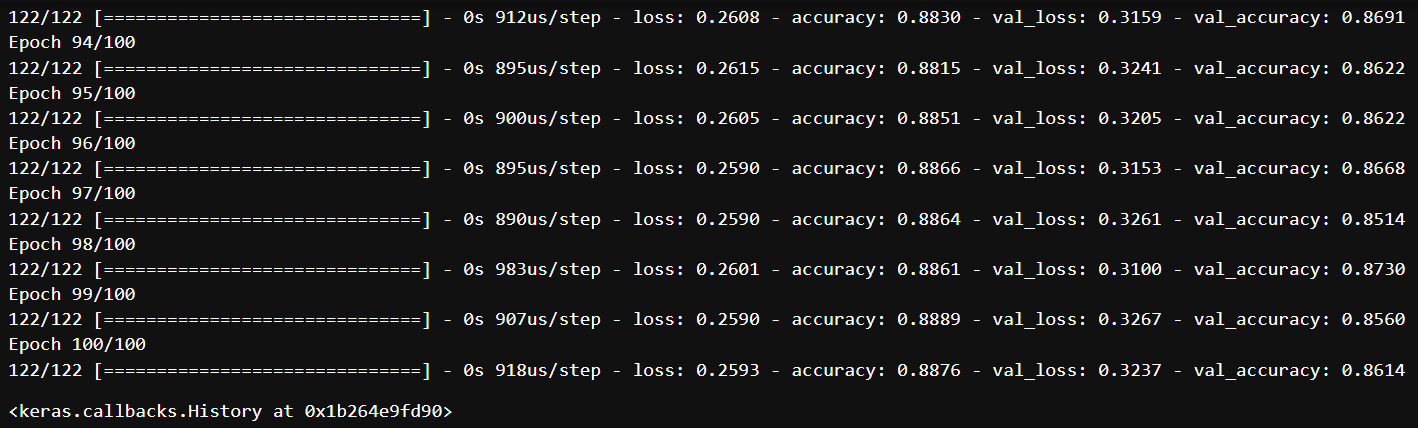

model.fit(X_train, y_train, epochs=100, validation_data=(X_val, y_val))
"""성능 검증"""
loss, acc = model.evaluate(X_test, y_test)
loss, acc
### 훈련, 검증, 테스트 순으로 좋은 것을 확인할수 있음 => 좋은 결과값
(0.3532726466655731, 0.8500000238418579)
"""예측하기"""
y_pred = model.predict(X_test)
y_pred
array([[0.9963542 ],
[0.61787796],
[0.18863559],
...,
[0.0634653 ],
[0.06351039],
[0.9970112 ]], dtype=float32)
"""평가를 위해서 예측값을 종속변수의 범주 형태(0 or 1)로 변환하기"""
base = 0.5
### True = 1 // False = 0 (true를 int로 바꾸면 1이되고 false를 int로 바꾸면 0이 됨)
binary_pred = (y_pred > base).astype(int)
binary_pred
array([[1],
[1],
[0],
...,
[0],
[0],
[1]])
"""성능 평가"""
precision = precision_score(y_test, binary_pred)
recall = recall_score(y_test, binary_pred)
f1 = f1_score(y_test, binary_pred)
precision, recall, f1
(0.8887744593202883, 0.9084210526315789, 0.8984903695991671)
"""매트릭스 확인"""
conf_matrix = confusion_matrix(y_test, binary_pred)
conf_matrix
array([[242, 108],
[ 87, 863]], dtype=int64)
